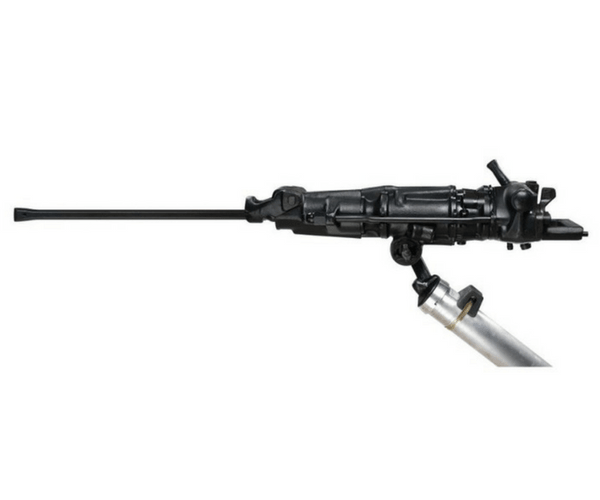

Drills with servo support
Drill Code: TOYO245
The TOYO245 drill offers incomparable operating stability, thanks to a wide range of drilling angles. The servo support absorbs the majority of the vibrations, making the machine easy and comfortable to use, even after many hours of work.
The controls are located on the rear head, allowing the operator to control the drill easily and quickly.
The lubrication system is completely automatic, reducing waste and speeding up work.
Technical Specification
| Weight | 26 kg |
| Length Overall | 660 mm |
| Piston Stroke | 68 mm |
| Piston Dia | 66.7 mm |
| Aria cons. m3/min at 5 bar | 2.7 |
| Shank | 22 x 108 |
Drill Code: TOYO285
The TOYO285 is the best machine for rapid drilling operations, irrespective of the type of rock. Each individual component is made from top quality raw materials and designed to maintain its characteristics throughout a long working life. Drill and servo support are well balanced to minimise kick-back during operation.
The exhaust deflector can be positioned in any direction to make the operator’s work as comfortable as possible. The external components of the drill are made from ultra-rigid hard steel. Internal components are constantly lubricated to prolong the working life and efficiency of the machine.
Technical Specification
| Weight | 31 kg |
| Length Overall | 675 mm |
| Piston Stroke | 68 mm |
| Piston Dia | 76.2 mm |
| Aria cons. m3/min at 5 bar | 3.5 |
| Shank | 22 x 108 |
Drill Code: TOYO855
The TOYO855 drill has a medium servo support and high rate of penetration. Balance between the bit and servo support is perfect, minimising kick-back during use.
The exhaust deflector is made from synthetic rubber to minimise the acoustic pollution caused by drilling. The complete constant lubrication system considerably prolongs the life of the various components.
Top quality materials and unbeatable performance.
Technical Specification
| Weight | 27 kg |
| Length Overall | 615 mm |
| Piston Stroke | 60 mm |
| Piston Dia | 85 mm |
| Aria cons. m3/min at 5 bar | 3.5 |
| Shank | 22 x 108 |

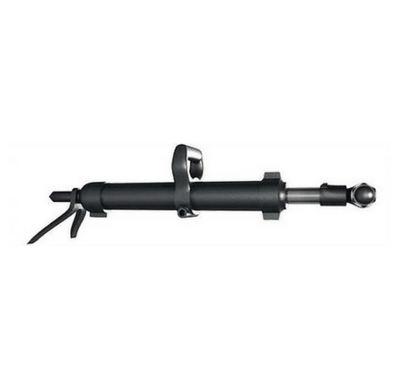

Servo Support
Technical Specification
| TOYO20 | TOYO45 | TOYO85 | TOYO55 | |
| Compatibility | TOYO165 | TOYO245 | TOYO285 | TOYO855 |
| Weight | 12 kg | 12 kg | 15.2 kg | 13 kg |
| Length | 1395 mm | 1395 mm | 1750 mm | 1530 mm |
| Length(extended) | 2360 mm | 2360 mm | 2960 mm | 2530 mm |
| Feed Length | 965 mm | 965 mm | 1210 mm | 1000 mm |
| Feed cylinder Dia | 57 mm | 57 mm | 62 mm | 65 mm |
