Hydraulic Jacking Plant

FEATURES

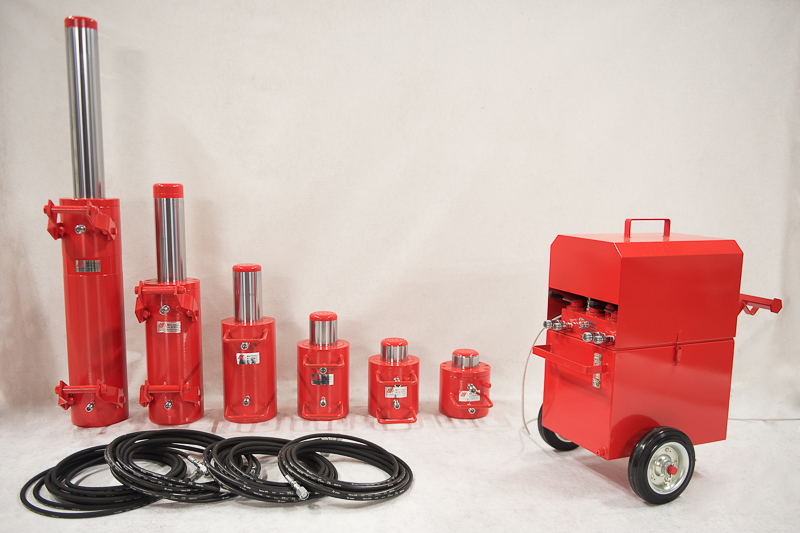

The IM 300 Hydraulic Jacking Plant is indispensable to the work in marble, granite and stone quarries and eliminates all the problems relative to the lifting and jacking of large masses. The plant is produced in four versions are extremely compact and can be easily versions are extremely compact and can be easily moved. The IM 300 has an uotput of 300 Tons with two 120 mm. and 220 mm. stroke jacks; it is composed of a pump unit delivbering a 700 bar pressure, and one or more hydraulic jacks with varying strokes.

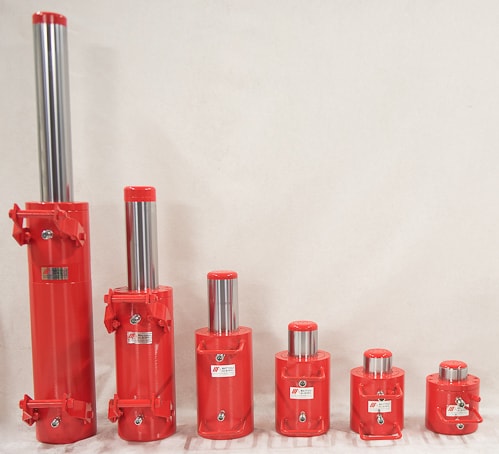

HYDRAULIC JACKS: FEATURES
  • Two-way hydraulic cylinders
  • Special processed thick crome plated steel shaft
  • Anti-friction metal terminal ring nut
  • High pressure multiple oil sealers
  • High and low pressure safety valve
  • Delivery pressure: 700 bar

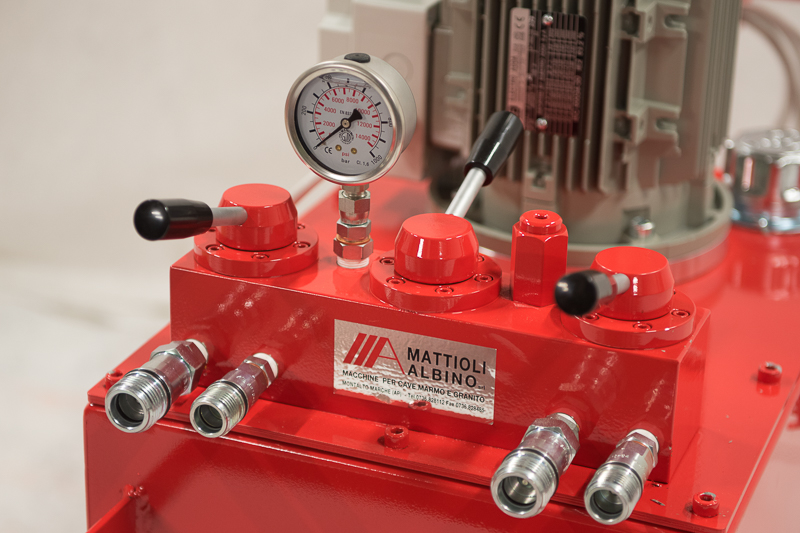

PUMP UNIT: TECHNICAL DATA

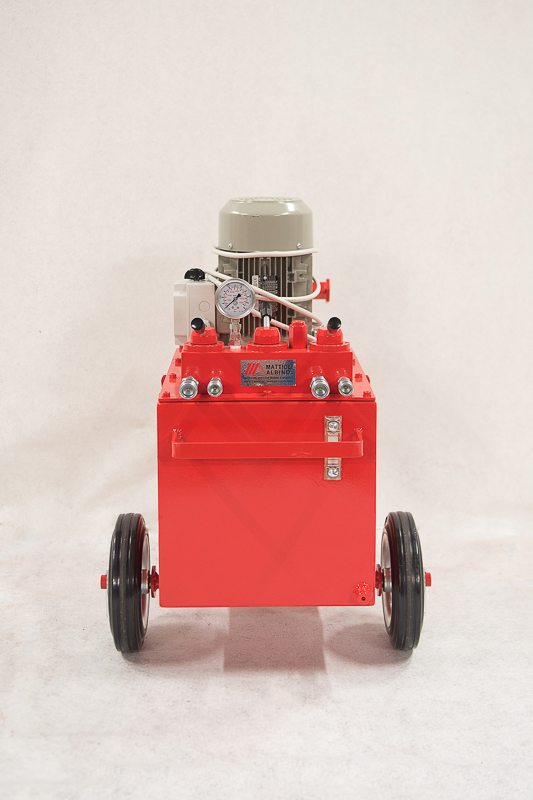

A) IM 300 DR with 6,5 KW diesel engine

B) IM 300 SR with 6,2 KW explosion engine

C) IM 300 PH with 2,7 KW pneumatic motor

D) IM 300 EH with 2,2 KW electric motor

  • Working pressure 700 bar.
  • Radial autosuction pistons pump.
  • 40 litre tank.
  • 700 bar safety pressure reliefe valve.
  • Hydraulic circuit cutoff faucet.
  • Sealed glycerine 0-1000 bar pressure gauge.
  • Two side distributor valves for direct control of each jack.
  • 1/4 – 3/8 screw attachments for delivery and return high pressure.
MODELS
 MOD.160/50 50 mm Run

160 ton. Output

Weight Kgs 40

Closed Side 210 mm

Open Side 260 mm

 MOD.160/65  65 mm Run

160 ton. Output

Weight Kgs 60

Closed Side 260 mm

Open Side 325 mm

 MOD.160/120  100 mm Run

160 ton. Output

Weight Kgs 72

Closed Side 330 mm

Open Side 430 mm

 MOD.160/220 200 mm Run

160 ton. Output

Weight Kgs 92

Closed Side 430 mm

Open Side 630 mm

 MOD.160/320 320 mm Run

160 ton. Output

Weight Kgs 160

Closed Side 600 mm

Open Side 920 mm

 MOD.160/600 610 mm Run

160 ton. Output

Weight Kgs 207

Closed Side 940 mm

Open Side 1550 mm
