Steel Hydraulic Splitting Cushions

STELL HYDRAULIC SPLITTING CUSHIONS

Our offer includes:

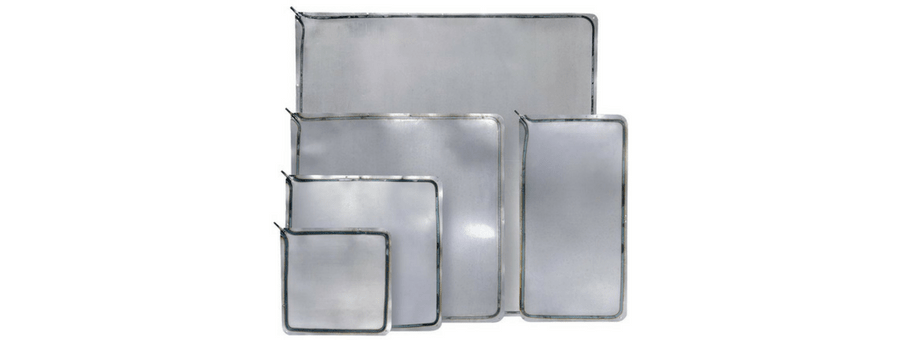

  • Steel hydraulic splitting cushions for detaching marble and granite blocks from the quarry wall.  A quality product made from the best steel sheet with high resistance and ductility.  Available in numerous different sizes.

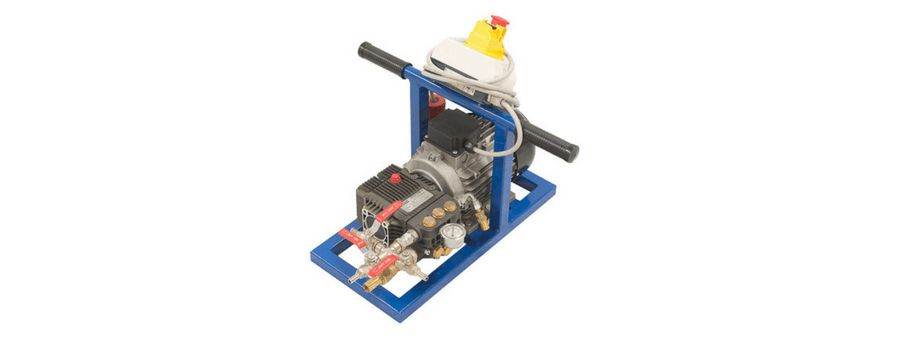

  • Pump for hydraulic splitting cushions.

Contact us for more information.

VERSIONS AVAILABLE

Hydraulic splitting cushions are available in the following versions:

Dimension Weight (kg) Press. (bar) Push(ton) Expansion(cm)

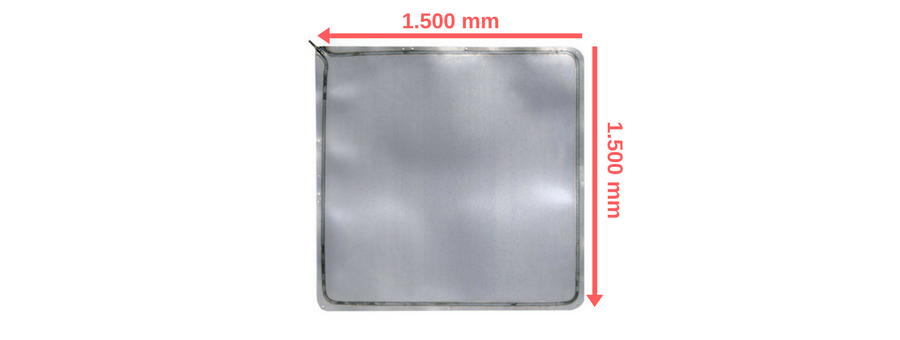

1.500 x 1.500 26,3 30 675 20

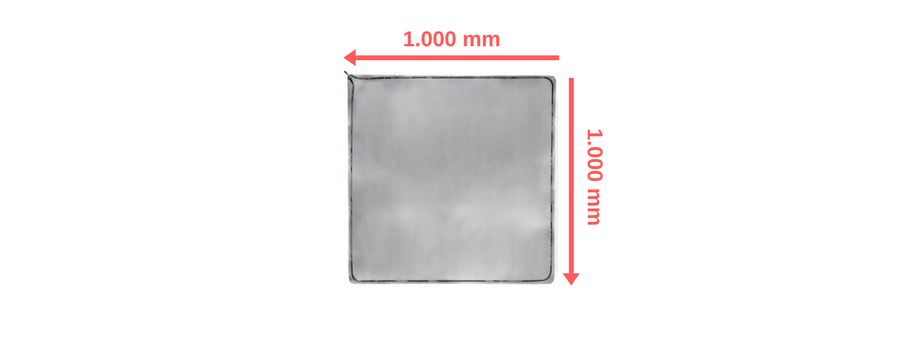

1.000 x 1.000 11,7 30 300 20

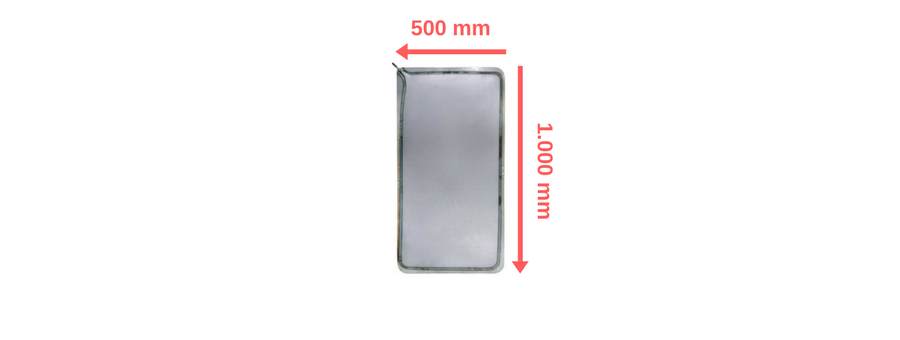

500 x 1.000 5,9 30 150 20

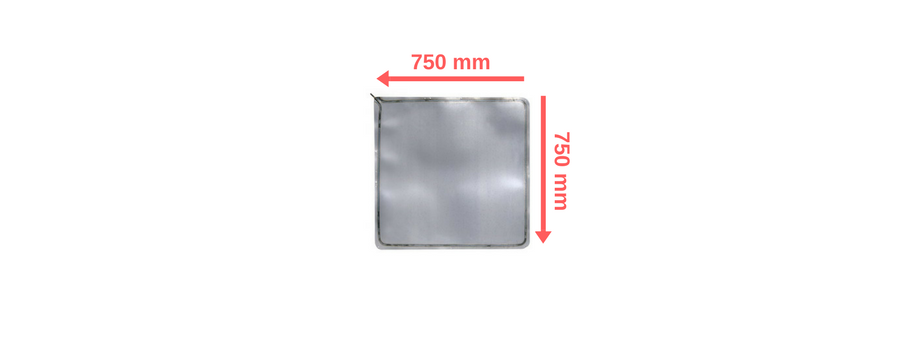

750 x 750 6,6 30 169 20

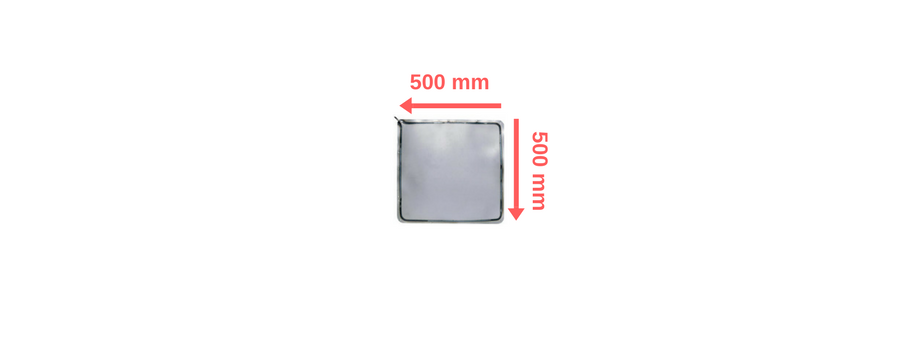

500 x 500 2,9 30 75 20
